Description

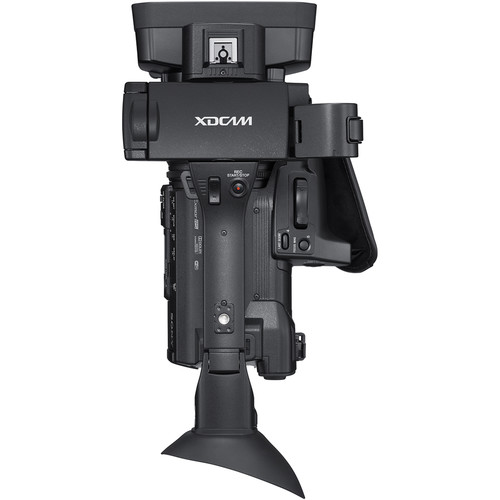

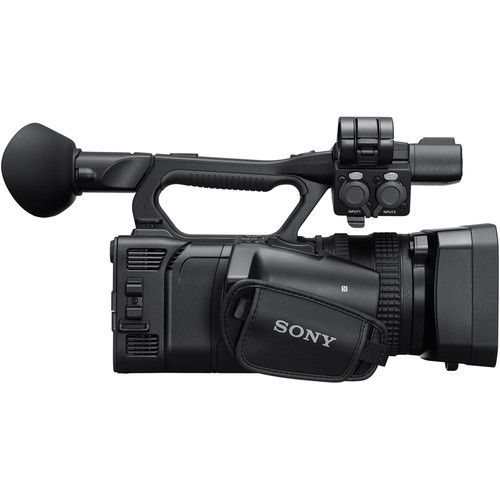

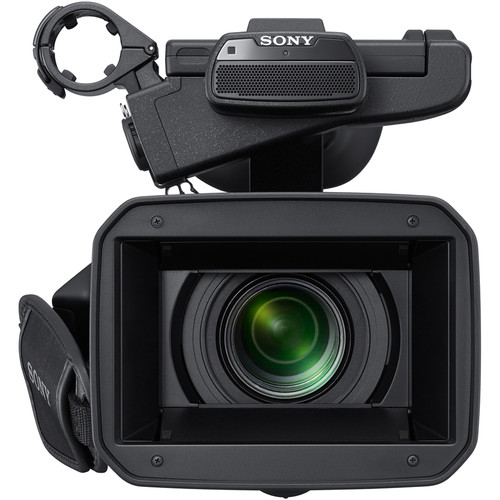

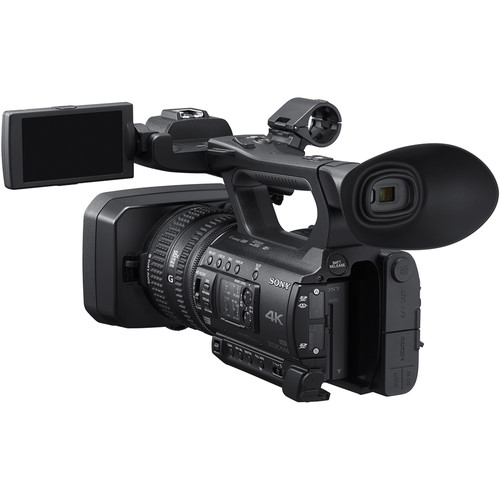

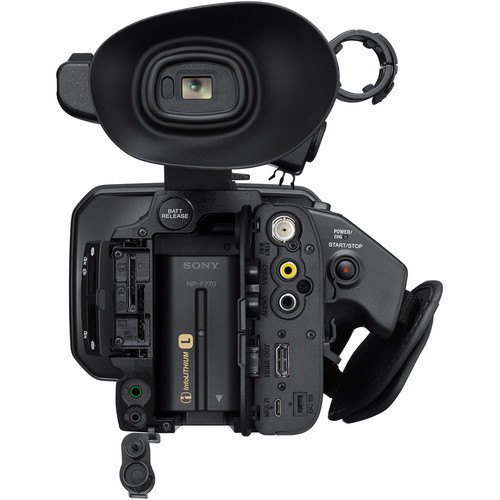

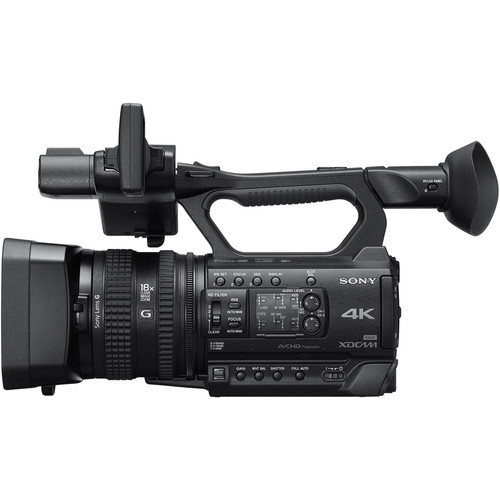

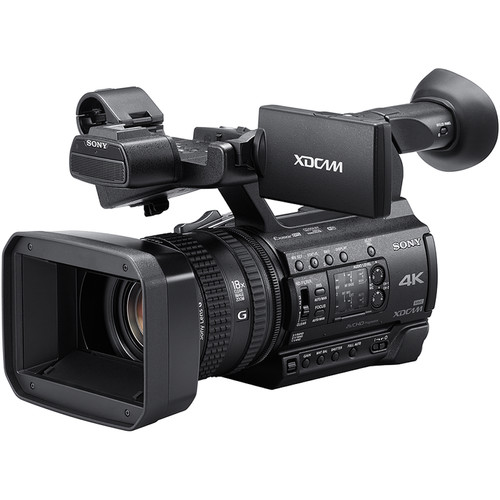

Sony PXW-Z150 4K XDCAM Camcorder
The Sony PXW-Z150 4K XDCAM Camcorder brings high-quality performance, adaptability, and ease of use to a compact, handheld body that is the same size as the HXR-NX100. Suitable for corporate video, house of worship, and legal deposition recording. The camcorder features a single Exmor RS sensor with a UHD 4K (3840 x 2160) resolution, Sony G lens with 12x optical zoom range, and 18/24x Clear Image Zoom in 4K/HD. It can record 4K in XAVC Long at 4:2:0 8-bit, and HD in XAVC Long at 4:2:2 10-bit at 50 Mb/s, as well as MPEG2HD at 4:2:2 or 4:2:0 in 8-bit only. The integrated zoom lens features individual lens control rings for focus, iris, and zoom, and produces smooth-rounded-out-of-focus highlights. The lens can be used in either full-auto mode with servo control or as a completely manually operated lens.
The camcorder supports storing up to 6 picture profiles and allows you to share profiles; the camera also supports Sony’s Slow and Quick Motion for shooting HD video at variable frame rates, including 120 fps. Recording to a variety of formats, frame rates, and codecs, the camcorder supports 100 Mb/s XAVC Long GOP recording of 4K UHD video at up to 29.97p, HD up to 59.94p, MPEG HD up to 59.94p, and AVCHD 2.0 up to 59.94p. Your footage is recorded to media via two SD memory card slots. You can choose to record simultaneously to both cards or use the relay mode which switches recording automatically to the second memory card when the first one is full. It features built-in Wi-Fi and NFC connectivity. The PXW-Z150 features two 3-pin XLR audio inputs that support line, mic, and mic +48V (phantom power) for using external microphones; you can also use the PXW-Z150’s built-in microphone to record audio when shooting. The camcorder also includes Night Shot capability for shooting in extremely dim lighting conditions as well as date/time stamp, and timecode functionality.
The PXW-Z150 is equipped with two memory card slots, one of which is for SDHC/SDXC cards only, while the other slot is compatible with SDHC/SDXC and Memory Stick PRO Duo (Mark 2)/Memory Stick PRO-HG Duo cards.
Two media slots can be used to record in either “SIMUL” or “RELAY” mode. “RELAY” mode automatically switches recording from the first to the second memory card when the first is full, while “SIMUL” mode permits simultaneous recording to two memory cards. You can choose to record the same file to the second slot, creating an instant copy, or record a lower quality proxy for post.
You can fine-tune the look of movies before shooting by adjusting up to 99 parameters such as gamma, knee, black level, color model, color level, color phase, and more. Adjusted parameters can be saved along with other settings as a profile, and up to six profiles can be stored for later recall.
You can copy the settings from one PXW-Z150 to another PXW-Z150 so that the user can shoot with multiple cameras in the same settings. The picture profiles only work with the same model of camera.
| Brands | Sony |
|---|
Sony PXW-Z150 Specs
| Sensor Resolution | Actual: 20 Megapixel Effective: 14.2 Megapixel |
| Sensor Type | 1″-Type CMOS Sensor |
| Image Stabilization | Optical in Integrated Lens |
| Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters |
| Capture Type | Video Only |
| Shutter Speed | 1/10000 to 1/6 Second |
| Gain | -3 to 33 dB |
| Minimum Illumination | 1.7 Lux |
| White Balance | 2300 to 15,000K |
| Focal Length | 9.3 to 111.6mm (35mm Equivalent Focal Length: 29 to 348mm) |
| Optical Zoom Ratio | 12x |
| Max Digital Zoom | 48x |
| Maximum Aperture | f/2.8 to 4.5 |
| Minimum Focus Distance | Not Specified by Manufacturer |
| Filter Size | 62 mm |
| Control Rings | Focus Zoom Iris |
| Focus Control | Autofocus Manual Focus |
| Internal Recording Modes | XAVC-L 4:2:0 8-Bit 3840 x 2160 at 23.98/25/29.97 fps [60 to 100 Mb/s] 1920 x 1080i at 50/59.94 fps [25 to 50 Mb/s] 1920 x 1080p at 23.98/25/29.97/50/59.94 fps [35 to 50 Mb/s] 1280 x 720 at 50/59.94 fps [50 Mb/s] MPEG-2 4:2:2 1920 x 1080p at 23.98/25/29.97 fps [50 Mb/s] 1280 x 720 at 23.98/25/29.97/50/59.94 fps [50 Mb/s] AVCHD 1920 x 1080p at 23.98/25/29.97/50/59.94 fps [24 to 28 Mb/s] |
| Variable Frame Rates | 1080i: to 119.88 fps 1080i: to 100 fps 1080i: 1 to 60 fps 1080i: 1 to 50 fps |
| Recording Limit | Up to 750 Minutes |
| Built-In Microphone Type | Stereo |
| Audio Recording | 2-Channel 24-Bit 48 kHz |
| IP Streaming | None |
| Video I/O | 1 x RCA (Composite) Output 1 x HDMI Output 1 x BNC (3G-SDI) Output |
| Audio I/O | 1 x Stereo 2RCA Output 1 x 1/8″ / 3.5 mm TRS Stereo Headphone Output 2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input |
| Power I/O | 1 x Barrel Input |
| Other I/O | 1 x 2.5 mm Sub-Mini (LANC) Control 1 x Micro-USB |
| Wireless | 2.4 GHz Wi-Fi 4 (802.11n) |
| Global Positioning (GPS, GLONASS, etc.) | None |
| Size | 3.5″ |
| Resolution | 1,560,000 Dot |
| Display Type | Articulating LCD |
| Type | Built-In Electronic (OLED) |
| Size | 0.39″ |
| Resolution | 1,440,000 Dot |
| Focus Type | Auto and Manual Focus |
| Focus Mode | Automatic, Manual Focus |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Battery Type | Sony L-Series |
| Power Consumption | 6.6 W |
| Tripod Mounting Thread | 1/4″-20 Female |
| Accessory Mount | 1 x Intelligent Hot Shoe |
| Dimensions (W x H x D) | 6.7 x 7.4 x 14.6″ / 171.3 x 187.8 x 371.3 mm |
| Weight | 5.1 lb / 2.3 kg |
| Package Weight | 8.74 lb |
| Box Dimensions (LxWxH) | 18.05 x 10.6 x 9.5″ |
