Description

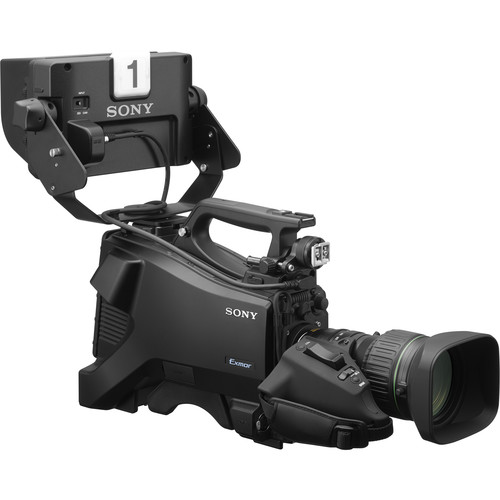

Sony Full HD Studio Camera with 7″ Viewfinder and 20x Lens

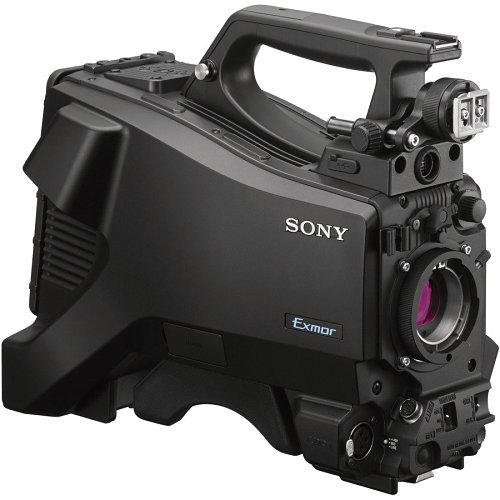

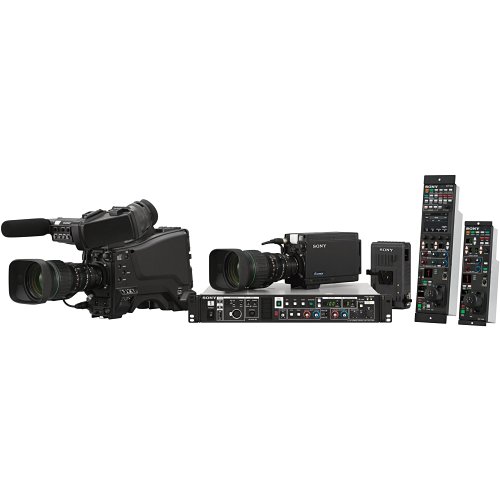

The Sony Full HD Studio Camera with 7″ Viewfinder and 20x Lens includes a 2/3″ HD camera that features three Sony Exmor CMOS sensors offering Full HD picture quality. The camera supports the 3G-SDI platform, with 1080p 50 and 59.94 signal processing, while maintaining low power consumption. The processor supports 1080PsF 23.98, as well as 25 and 29.97. Combined with the HXCU-FB80 CCU, the camera’s output is 4K upscalable and capable of HD HDR (HLG, Hybrid Log-Gamma).
Included with the camera is a 20x optical zoom lens that can be operated in either manual or servo zoom mode. The focus of the lens is strictly manual, and it features a macro function that can be engaged when the lens is at its widest focal length (8.2mm) and focus closer than half an inch away. The kit provides a 7″ color viewfinder sporting a 1920 x 1080 resolution. Also included are a V-shoe, a viewfinder hood, a 20-pin viewfinder cable, and a tally number plate.
| Brands | Sony |
|---|
Sony HXC-FB80 Specs
| Image Sensor | 3-Chip 2/3″ CMOS Sensor |
| Sensor Resolution | Effective: 2.07 Megapixel |
| Prism Speed | f/1.4 |
| Gain | -3 to 12 dB |
| Sensitivity | f/12 at 2000 lux 89.9% Reflectance (59.94 Hz) f/13 at 2000 lux 89.9% Reflectance (50 Hz) |
| Signal-to-Noise Ratio | 60 dB |
| Focal Length | 8.2 to 164mm |
| Optical Zoom Ratio | 20x |
| Maximum Aperture | f/1.9 |
| Minimum Focus Distance | Macro: 0.4″ / 1.0 cm Entire Zoom Range: 35.4″ / 90.0 cm |
| Filter Size | 82 mm |
| Focus Control | Manual Focus |
| Shutter Speed | 1/60 to 1/2000 sec |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters |
| CCU I/O | 1 x LC Fiber LAN |
| Video I/O | 1 x BNC (Unspecified SDI) Input/Output 1 x BNC (3G-SDI) Output 1 x BNC (HD-SDI) Output |
| Audio I/O | 2 x XLR 3-Pin Input 1 x 1/8″ / 3.5 mm TRRS Headphone/Mic Input |
| Other I/O | 1 x BNC (Genlock) Input/Output |
| Size | 7″ |
| Resolution | 1920 x 1080 |
| Power I/O | 1 x XLR 4-Pin (10.5 to 17 VDC) Input |
| Power Consumption | 32 W |
| Operating Temperature | 14 to 113°F / -10 to 45°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Dimensions (W x H x D) | 22.5 x 17 x 11.6″ / 571 x 433 x 295 mm |
| Weight | 14.99 lb / 6.8 kg |
| Package Weight | 20.25 lb |
| Box Dimensions (LxWxH) | 25.1 x 15.7 x 15.2″ |
