Description

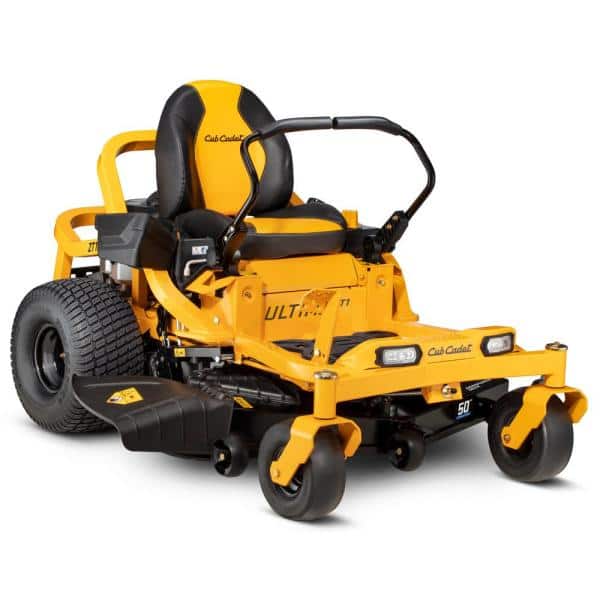

Introducing the ULTIMA ZT1 SERIES. Step up to the ultimate all-around mowing experience. The Cub Cadet ULTIMA Series ZT1 54 features a 24HP/725cc Kohler 7000 Series V-Twin OHV 4-Cycle Engine, 2 in. x 2 in. tubular steel frame, comfortable high back seat and much more. The Ultima Zero-Turn Riding Mower was built to raise the bar for enhanced strength, durability, redefined comfort and uncompromised performance.
- Equipped with an 11-Gauge 54 in. fabricated (Welded) triple-blade high lift deck with reinforced leading edges that results in finer clippings, fewer clumps, reduced stragglers and increased evenness, protected by the Cub Cadet triple guard corrosion defense system with e-coat and a lifetime warranty
- 24HP/725cc Kohler 7000 Series V-Twin OHV 4-Cycle Engine, V-twin cylinders reduce vibration for a smoother ride, Designed to run cooler and cleaner for longer, Delivers more power while decreasing fuel consumption
- Dual Hydro-Gear 2200 (EZT) Hydrostatic Drive System, Fan cooled 10cc pumps and wheel motors on each drive wheel, Provides optimal torque and speeds up to 7 MPH
- Tough and tubular frame the high-strength, continuous square 2 in. x 2 in. tubular steel frame with fully e-coat lower frame and triple guard corrosion defense system, a multi-step process electronically applies automotive-grade corrosion resistance with meticulous care to protect against wear and tear
- Dial in your perfect cut with a foot operated deck lift and a dial control knob offering 15 qt. in. deck height adjustments from 1 in. to 4. 5 in. leading to a precise and even cut
- High comfort, high performance an automotive-inspired, ergonomic, fully adjustable premium 18 in. H-back seat and a durable, advanced polymer seat suspension system, adjustable lap bars and industry-exclusive ergonomic hand grips optimized for comfort providing you the confidence to maximize your speed and reduce operator fatigue
- Turf damage prevention 11 in. x 6 in. to 5 in. smooth tread front wheels pivot 180 without turf damage, 20 in. x 10 in. to 8 in. turf master premium rear tires offer excellent traction, minimize turfing and provide a better ride on uneven ground at higher speeds
- Ease of maintenance an open frame design and hinged/removable floor pan allow easy access to the deck and engine for quick and simple maintenance
- Command center conveniently located control panel enhances operator productivity and vibration-dampening soft rubber floor mat provides sure footing, comfort and ample leg room
- Precision trimming offset front casters align with blade edge for trimming precision while maintaining line-of-sight and stable balance
- Illuminating dual-LED headlights provide ultimate vision for mowing in low light conditions and tow hitch come standard
- Mow for an extended period of time: 3.5 gal. fuel tank capacity to keep you mowing and minimize time loss for refueling needs
- Electronic fingertip blade engagement PTO allows for smooth operation of the deck
- 3-way adjustable ergonomic lap bar design with integrated parking brake and mow-in-reverse, provides comfort with a simple operation
- Ideal for mowing slight rolling hills and several obstacles up to 4 acres
- Expand your mowers capabilities: full lineup of premium attachments and accessories include baggers, mulch kits, carts and many other attachments (sold separately)
- Cub Cadet Ultima ZT1-54 comes fully crated and requires some assembly upon arrival
The Strongest Warranty in it’s class 3-year / unlimited-hour warranty. Plus, limited lifetime warranty on frame and fabricated deck shell.
Specifications
| Specification | Description |
|---|---|
| Brand | Cub Cadet |
| Product Weight | 600 lb. |
| Product Length | 80 in. |
| Warranty | 3-year / unlimited-hour warranty. Plus, limited lifetime warranty on frame and fabricated deck shell. |
| Bag Kit Included | No |
| Blade Engagement | Electric |
| Blade Material | Steel |
| Blade Speed | 0 rpm |
| Blade Type | High-Lift |
| Color | Yellow |
| Country of Origin | Made in USA |
| Cruise Control | Yes |
| Cup Holder(s) | Yes |
| Cut Height Range | 15 in. deck height adjustments from 1 to 4.5 in. |
| Cutting Width | 54 in. |
| Deck Cleanout | No |
| Deck Material | 11 ga. fabricated steel with reinforced leading edges |
| Deck Size | 54 in. |
| Deck Thickness | 11 ga. fabricated steel with reinforced leading edges |
| Deck Type | Fabricated |
| Discharge Location | Side |
| Drive Type | Hydrostatic Drive System |
| Engine Brand | Kohler 7000 Series |
| Engine Cycles | 4-Cycle |
| Engine Displacement | 725cc |
| Engine Type | 24HP/725cc Kohler 7000 Series V-Twin OHV 4-Cycle Engine |
| Front Tire Type | smooth tread front wheels |
| Front Wheel or Tire Size | 11 x 6 in. |
| Fuel Capacity | 3.5 gal. |
| Fuel Type | Gasoline |
| Headlight(s) | Yes |
| Height Adjustment Type | Foot operated deck lift and a dial control knob |
| Horsepower | 24 HP |
| Hour Meter | No |
| Intended Use Grade | Residential |
| Keyed Start | Yes |
| Lift Adjustment Type | Foot operated deck lift and a dial control knob |
| Material | Steel |
| Maximum Forward Speed | 7 mph |
| Maximum Reverse Speed | 3.5 mph |
| Mulching Capability | Yes |
| Number of Blades | 3 |
| Number of Cylinders | V-Twin |
| Number of Deck Positions | 15 Positions |
| Number of Deck Wheels | 5 |
| Number of Speeds | 0-7 mph |
| Oil capacity | 64 oz. |
| Power Steering | Yes |
| Power Type | Gas |
| Product Height | 47 in. |
| Product Width | 65 in. |
| Rear Tire Type | Turf master premium rear tires |
| Rear Wheel or Tire Size | 20 x 10 in. |
| Recommended Engine Oil | 10W-30 |
| Recommended Fuel Type | 4-Cycle Gasoline |
| Recommended Oil Type | SAE10W-30 |
| Rollover Protection | No |
| Run Time | 4 ac |
| Seat Back Height | 18 in. |
| Start Type | Electric Key Start |
| Steering Type | 3-way adjustable ergonomic lap bars |
| Terrain Type | Ideal for mowing slight rolling hills and several obstacles up to 4 ac |
| Torque | 0 ft./lb. |
| Transmission Type | Dual Hydro-Gear 2200 (EZT) Hydrostatic Drive System |
| Turning Radius | 0 deg. |
| Yard Size | Ideal for mowing up to 4 acres |
| Zero-Turn | Yes |
| Manufacturer Part Number | 17AREACM010 |
