Description

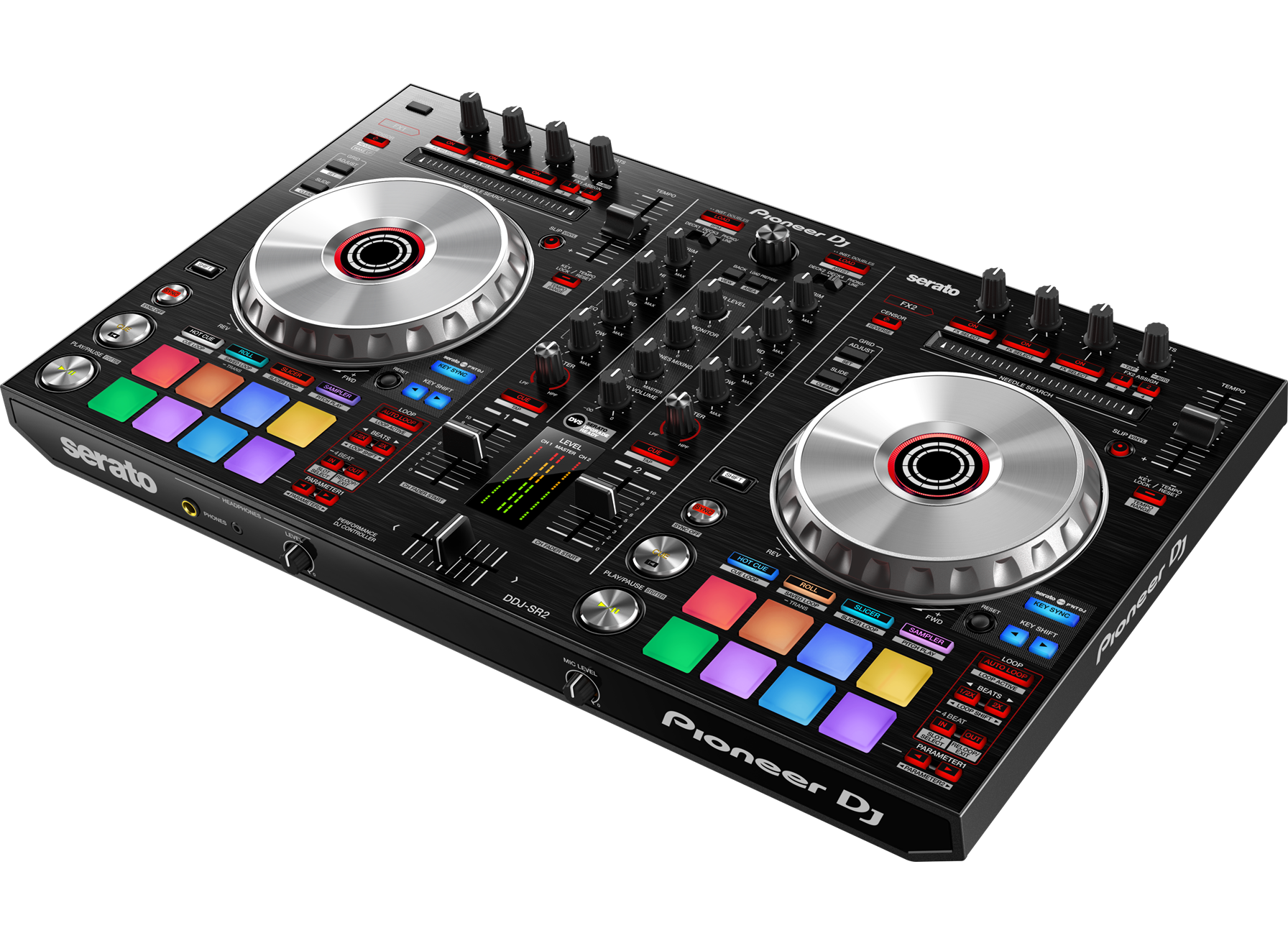

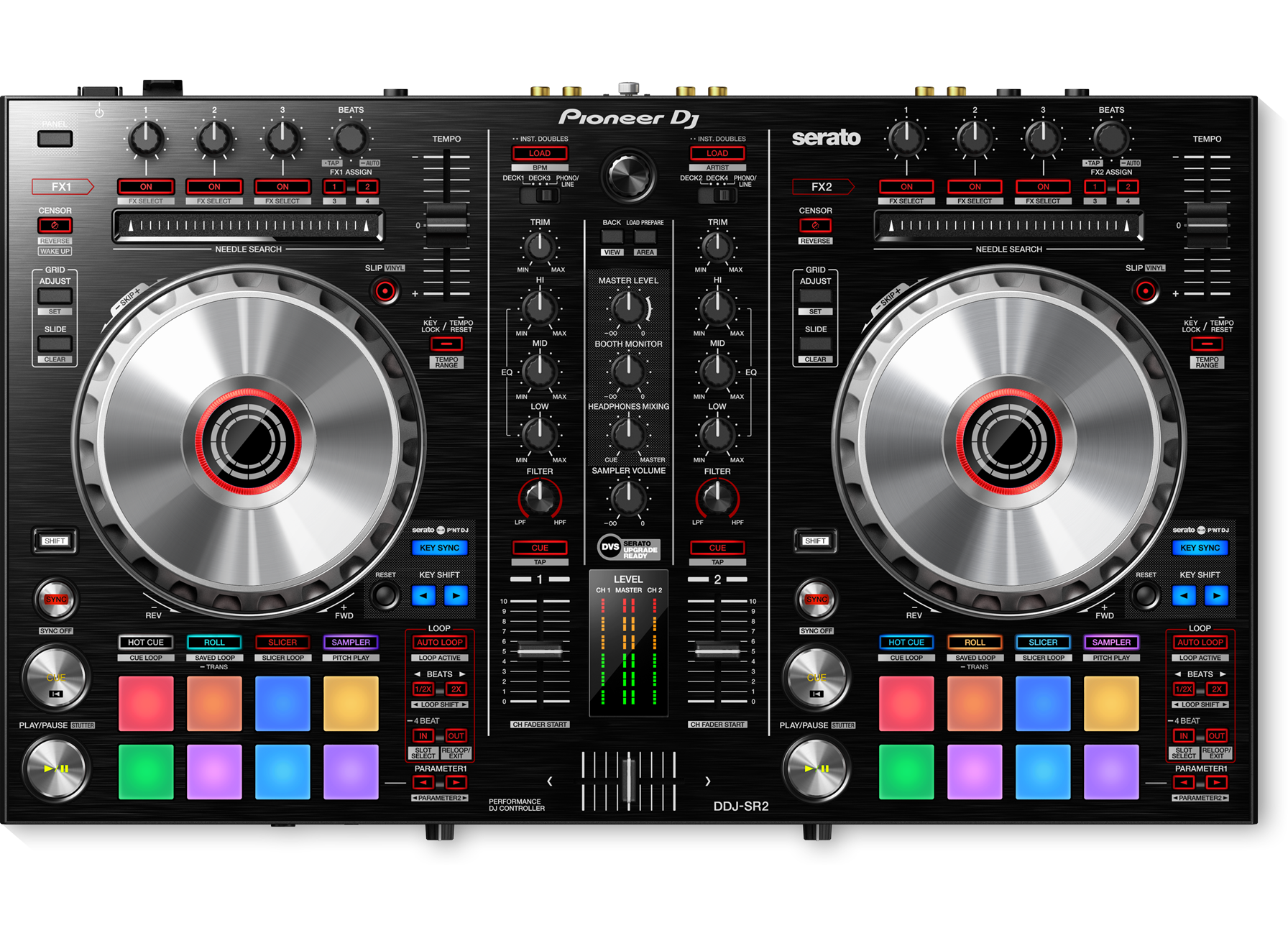

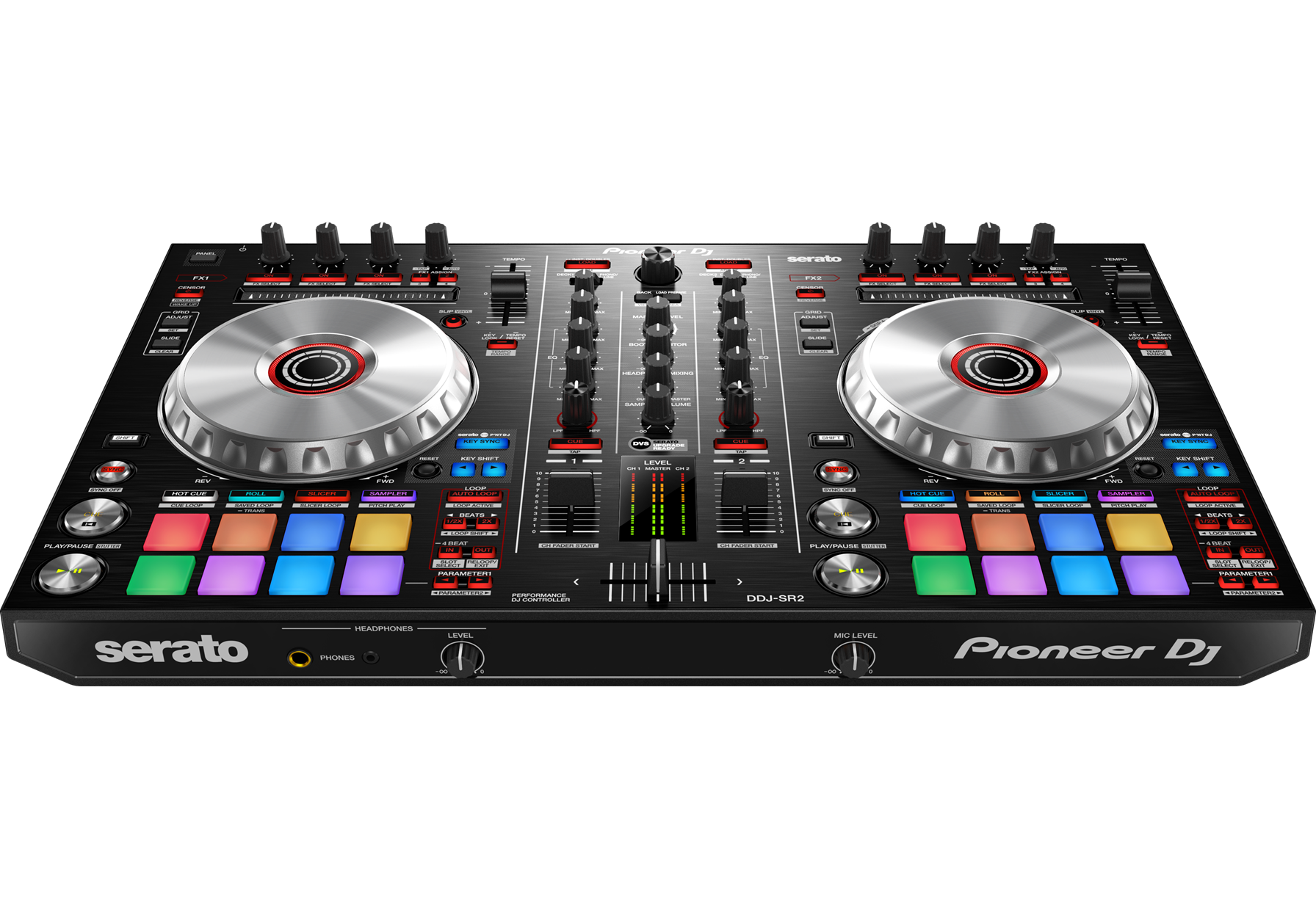

Pioneer DJ DDJ-SR2 Portable 2-Channel Controller for Serato DJ
Pioneer DJ DDJ-SR2 2-Channel Controller is designed to provide hands-on control of Serato DJ software. It features two low-latency jog wheels, as well as 16 multicolored performance pads (eight per channel) that provide touch access to commonly used effects, and functions such as hot cue, roll, slicer, and sampler. The controller includes Serato DJ, and Serato Pitch ‘n Time with dedicated controls for key-related functions including Key Shift, Key Sync, and Key Reset for an unprecedented amount of control over the keys without changing the tempo.

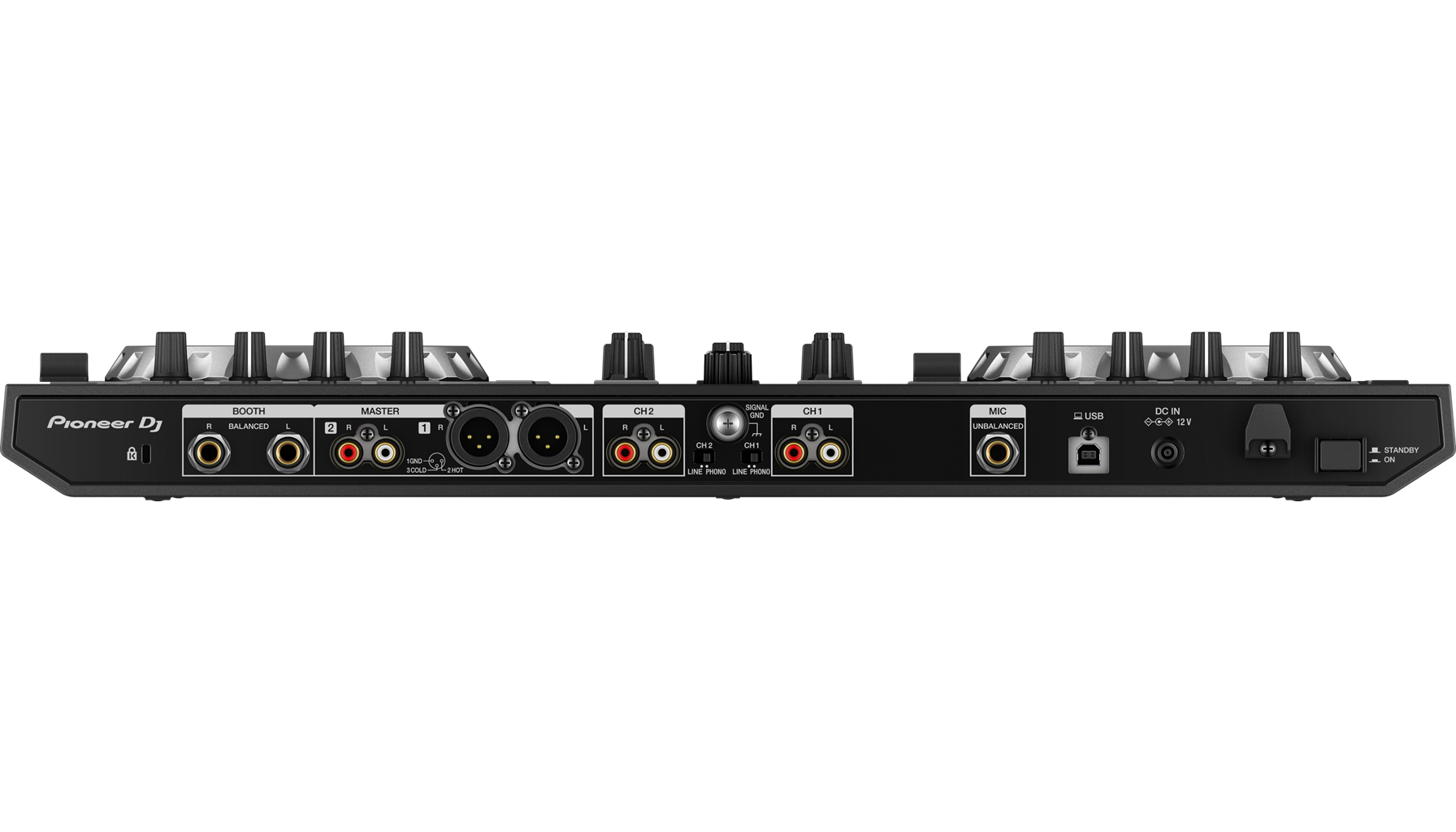

The controller has a 2-channel mixer and features built-in deck select buttons, which allow you to integrate 4 decks into the mixer for added versatility while performing. The unit has an integrated USB sound card as well as a 1/4″ microphone input for using analog sources. The mixer will function standalone without a connected computer. The rear panel offers phono/line RCA inputs, XLR & RCA master outputs, and 1/4″ booth outputs. The Pioneer DDJ-SR2 ships a power cord, AC adapter, and a USB cable.
Serato Pitch ‘n Time DJ Controls
- A series of dedicated buttons were created to trigger the key-related functions in Serato DJ
- Switch between the Key Shift, Key Sync, and Key Reset to play with keys without ever changing your tempo
- Key Shift: Change your track’s key by a semitone without altering the tempo
- Key Sync: Automatically sync the keys of different tracks for harmonic mixing
- Key Reset: Instantly reset to the track’s original key
Multicolored Performance Pads
- Use the large, multicolored tactile Performance Pads to trigger the Hot Cues, Roll, and Sampler features
- Hit the pads and watch their colors change as they indicate the selected pad mode, and playing status
Portable Design
- Take this controller with you wherever you go, thanks to the easy grab handles and lightweight design
- For simple plug-and-play connectivity you can choose between USB or AC power
Multiple Connections
- Balanced XLR outputs let you connect to a professional PA system, while a booth, and 2 master outs allow you to monitor your mixes
- Use the DDJ-SR2 as a mixer with multiplayers or turntables using the line, and phono inputs
Large Jog Wheels
- This compact controller features large, low-latency jog wheels to give you great scratch response and accuracy
Integral Control of Serato DJ
- Get involved with plug-and-play control of Serato DJ with dedicated buttons for FX, and advanced features such as Hot cue, Slip mode, Roll and slicer
- Simply connect your PC/Mac and start playing
Audio Mixer Feature
- Use trims, channel faders, and EQs to control audio from external turntables or media players
- Even when the controller isn’t connected to a computer, trims and faders can be used for audio input from external sources
Dual Level Meter
See the master out and channel levels at all times
Needle Search
- Needle search provides a touch strip for intuitive and fast searches
- Jump to any part of a track with one touch
DVS Upgrade-Ready
- The DDJ-SR2 is Serato DJ DVS ready
- The Serato DJ DVS Expansion Pack allows you to scratch with CDJs or analogue turntables using Serato NoiseMap Control CD/vinyl
| Brands | Pioneer DJ |
|---|
Pioneer DJ DDJ-SR2 Specs
| Configuration | Dual-Deck |
| Number of Channels | 2 x Stereo |
| Platter/Jog Wheel | 2 x Touch-Sensitive |
| Faders | 2 x Channel Level 1 x Crossfader 2 x Pitch |
| Sample Pads | 8 x Assignable per Deck (Backlit) |
| EQ | 2 x Channel EQ: Hi Mid Low |
| Performance Controls | BPM Counter, Beat Sync, Cues, EQ, Echo, FX, High-Pass Filter, Key Lock, Loop Points, Low-Pass Filter, MIDI Control, Master Tempo, Pitch Control, Sampler, Scratch, Search, Transport Controls, Vinyl Mode |
| Sample Rates | 44.1 kHz |
| Bit Depths | 24-Bit |
Connectivity
| Audio Inputs | 2 x Stereo RCA Coaxial Input 1 x 1/4″ TS Mic Input |
| Audio Outputs | 2 x XLR 3-Pin Master Output 1 x Stereo RCA Coaxial Master Output 2 x 1/4″ TRS Booth Output 1 x 1/4″ TRS Headphone Output 1 x 1/8″ / 3.5 mm TRS Headphone Output |
| USB | 1 x USB-B |
| Wireless Connectivity | None |
| Media Card Slots | None |
| Internal Drive Bays | None |
Performance
| Frequency Response | 20 Hz to 20 kHz |
| Input Level | Line: -12 dBu Phono: -52 dB Mic: -52 dB |
| Output Level | XLR Master: +6 dBu (Typical) +24 dBu (Max) Stereo RCA Master: +2 dBu (Typical) +20 dBu (Max) Booth: +6 dBu Headphone: +4 dBu |
| I/O Impedance | Line Input: 42 Kilohms Phono Input: 42 Kilohms Mic Input: 7 Kilohms XLR Master Output: 390 Ohms Stereo RCA Master Output: 820 Kilohms Booth Output: 390 Ohms Headphone Output: 10 Ohms |
| Load Impedance | XLR Master Output: 10 Kilohms Stereo RCA Master Output: 10 Kilohms Booth Output: 10 Kilohms Headphone Output: 32 Ohms |
| Crosstalk | Line: 88 dB |
| SNR | USB: 105 dB Line: 80 dB Phono: 75 dB Mic: 70 dB |
| THD | USB: 0.003% Line: 0.005% |
Compatibility
| Included Software | Serato DJ Pro Serato Pitch ‘n Time DJ |
| OS Compatibility | macOS 10.15 to 12 Windows 10 to 11 *As of September, 2022: Check with manufacturer for the most up-to-date compatibility |
| Processor Requirement | Intel Core i5 (64-Bit) Intel Core i7 (64-Bit) Intel Core i9 (64-Bit) AMD (64-Bit) Apple M1 |
| RAM Requirements | 4 GB |
| Storage Requirements | 5 GB |
| Minimum Display Resolution | 1280 x 720 |
| Required Hardware | Available USB 2.0 Port |
| Internet Connection | Required for Registration, Software/Driver Download |
Power
| Power Requirements | AC/DC Power Adapter (Included) |
| Power Supply Output | 12 VDC at 2 A |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| Power Consumption | 0.5 W |
Physical
| Anti-Theft Features | Kensington Security Slot |
| Operating Humidity | 5 to 85% |
| Operating Temperature | 41 to 95°F / 5 to 35°C |
| Dimensions (W x D x H) | 21.8 x 13.2 x 2.6″ / 553.7 x 335.3 x 65.0 mm |
| Weight | 8.2 lb / 3.7 kg |
Packaging Info
| Package Weight | 12 lb |
| Box Dimensions (LxWxH) | 25 x 16.9 x 5.9″ |
