Description

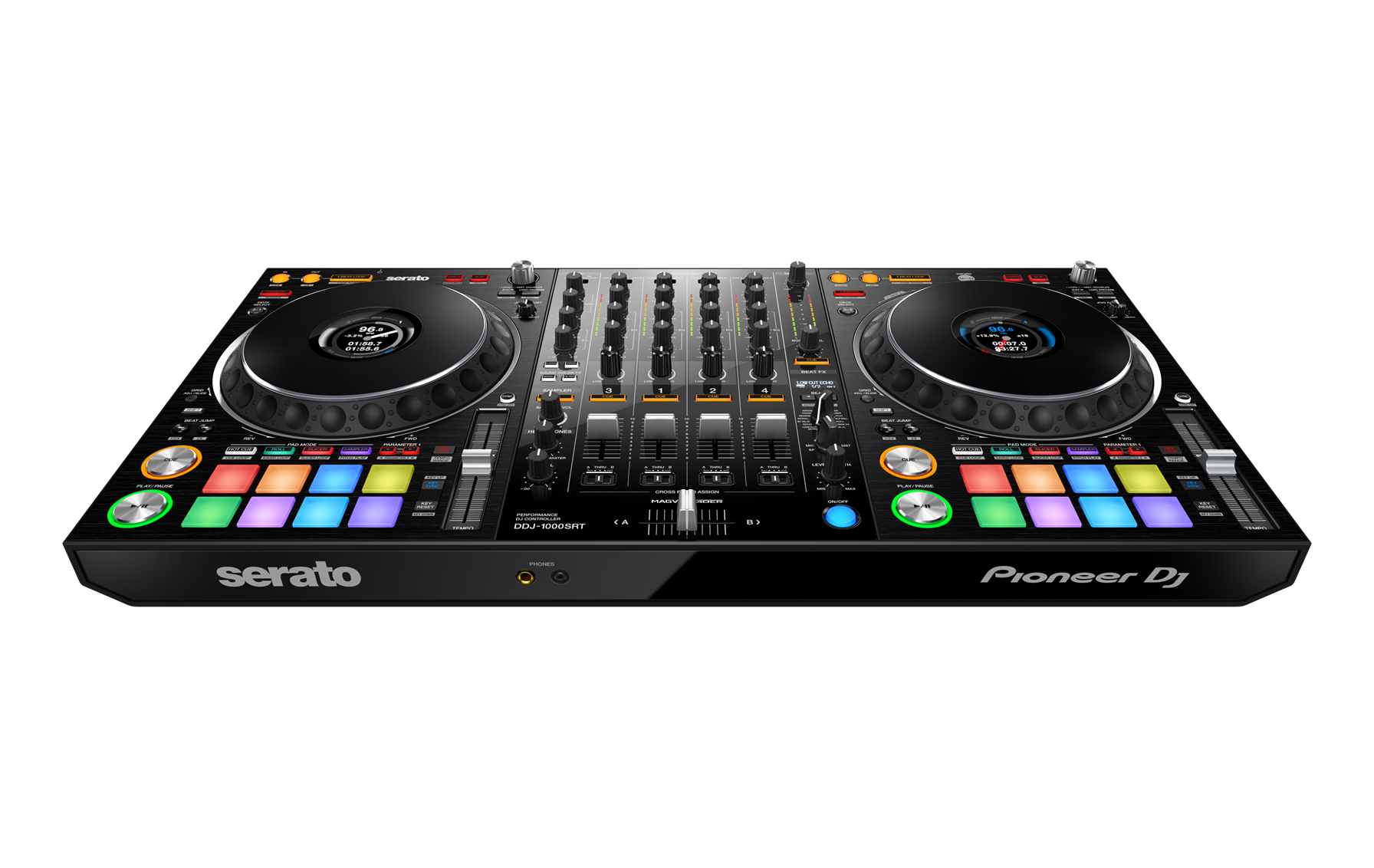

Pioneer DJ DDJ-1000SRT 4-Channel Serato DJ Controller with Integrated Mixer
Pioneer DJ DDJ-1000SRT Serato DJ Controller provides 4 channels of DJ performance control and deep integration with Serato DJ in a familiar format borrowed from Pioneer’s flagship DJM-900NX2 and CDJ-2000NX2 equipment. Full-sized jog wheels feature customizable color LCDs located in the center. The displays can be set with only the info you wish to see, including BPM, waveform, playback position, hot cue, and loop points. The jog wheels can also be Dual Deck enabled at the push of a button, allowing two tracks to be controlled, scratched, and hot-cued simultaneously.
The ergonomic design features 8 multicolor and velocity sensitive performance pads on each deck with four modes of operation including hot cue, roll, slicer, and sampler. You can load samples and tracks into Serato DJ and play with the onboard pads. The center panel of the DDJ-1000SRT is a 4-channel mixer with a built-in soundcard and features two USB Type-B connectors, allowing for dual laptop connections for seamless changeover during back-to-back performances. The mixer can connect mics, turntables, CD players, and other external audio sources. Each channel features a trim pot, 3-band EQ, Sound Color FX, and a level fader. The Pioneer DDJ-1000SRT ships with a full version of Serato DJ Pro, an AC power adapter, and a USB cable.
- Customizable color LCD on jog display screens are in the center of each jog wheel
- Reveal only the information you need
- BPM
- Waveform
- Playback position
- Hot cue
- Loop points
- Familiar jog wheels and layout, inherited from the club-standard CDJ and DJM flagship equipment
- Using Serato DJ Pro with the DDJ-1000SRT feels the same as playing from USB drives with a NXS2 setup
- Updated Magvel fader makes intricate performances feel easy
- Durable: Can withstand 10 million movements
- Refined software processing of the jog wheel and crossfader significantly reduces latency and enables intuitive scratching
- Popular Sound Color FX:
- Pitch
- Filter
- Dub Echo
- Noise
- Get Creative with 14 Beat FX: Instantly reference BPM and the name of the selected FX thanks to the dedicated Beat FX screen
- Hot Cues
- Pad FX
- Rolls
- Slicer
- Sampler
- Pitch Play
- With its aluminum and acrylic-finished top panel, the DDJ-1000SRT appears sleek and professional, while still being compact enough to transport easily between events
- The DDJ-1000SRT’s full-sized jog wheels are optimized for a professional scratch response. Use the JOG FEELING ADJUST control to adjust the load applied when the jog dial is rotated

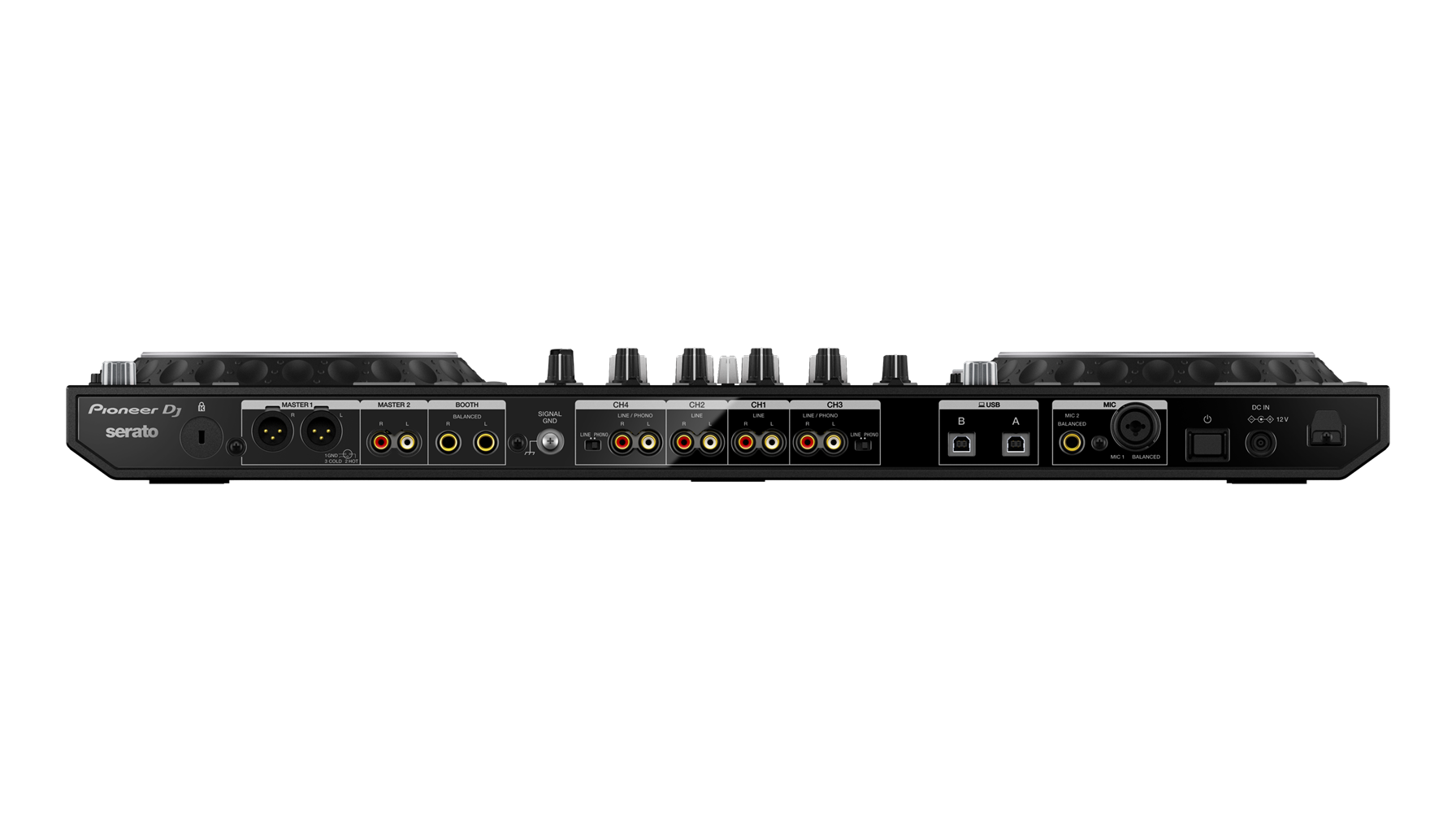

- This controller has 4 inputs for flexibility to connect to CDJs or analog turntables
- Connect directly to professional PA equipment via booth (1/4″), two master outputs (XLR & RCA), and two inputs (XLR-1/4″ combo and 1/4″)
- Compatible with the optional Serato DVS Expansion Pack for low-latency scratch control with CDJs or turntables
- Automatically change the key of your next track to match the master deck, and shift keys up or down to mix any combination of tracks in perfect harmony
| Brands | Pioneer DJ |
|---|
Pioneer DJ DDJ-1000SRT Specs
| Configuration | Dual-Deck |
| Number of Channels | 4 x Stereo 2 x Mic |
| Platter/Jog Wheel | 2 x 8.0″ / 20.3 cm Touch-Sensitive |
| Faders | 4 x Channel Level 1 x Crossfader (Replaceable) 2 x Pitch |
| Sample Pads | 8 x Assignable per Deck (Backlit) |
| EQ | Channel EQ: Hi: -26 to +6 dB at 20 kHz Mid: -26 to +6 dB at 1 kHz Low: -26 to +6 dB at 20 Hz Mic EQ: Hi: -12 to +12 dB at 10 kHz Low: -12 to +12 dB at 100 Hz |
| Performance Controls | Band-Pass Filter, Beat Sync, Brake, Cues, EQ, FX, High-Pass Filter, Key Lock, Loop Points, Low-Pass Filter, Pitch Control, Scratch, Search, Slip Mode, Tempo Control, Transport Controls, Vinyl Mode |
| Built-In Effects | Delay (Tap), Echo (Type Unspecified), Flanger, Phaser, Reverb |
| Sample Rates | 44.1 kHz |
| Bit Depths | 24-Bit (A/D Conversion) 32-Bit (D/A Conversion) |
| Audio Inputs | 2 x Stereo RCA TS Line Input 2 x Stereo RCA TS Line/Phono Input 1 x Combo XLR-1/4″ TRS Mic Input 1 x 1/4″ TRS Mic Input |
| Audio Outputs | 1 x 1/4″ TRS Headphone Output 1 x 1/8″ / 3.5 mm TRS Headphone Output 2 x XLR 3-Pin Master Output 1 x Stereo RCA TS Master Output 2 x 1/4″ TRS Booth Output |
| Other I/O | 1 x Phono Ground Terminal |
| USB | 2 x USB Type-B |
| Media Card Slots | None |
| Internal Drive Bays | None |
| Frequency Response | 20 Hz to 20 kHz |
| Input Level | Line: -12 dBu Phono: -52 dBu Mic: -57 dBu |
| Output Level | XLR Master: +6 dBu (Typical) +24 dBu (Max) Stereo RCA Master: +2 dBu (Typical) +20 dBu (Max) Booth: +6 dBu (Typical) +25 dBu (Max) Headphone: +8 dBu |
| I/O Impedance | Line Input: 47 Kilohms Phono Input: 47 Kilohms Mic Input: 3.3 Kilohms XLR Master Output: ≤330 Ohms Stereo RCA Master Output: ≤680 Ohms Booth Output: ≤330 Ohms Headphone Output: ≤10 Ohms |
| Load Impedance | XLR Master Output: 10 Kilohms Stereo RCA Master Output: 10 Kilohms Booth Output: 10 Kilohms Headphone Output: 32 Ohms |
| Crosstalk | Line: 82 dB |
| SNR | USB: 112 dB Line: 96 dB Phono: 85 dB Mic: 80 dB |
| THD | USB: 0.002% Line: 0.005% |
| Included Software | Serato DJ Pro Serato Pitch ‘n Time DJ |
| OS Compatibility | Windows 7 Windows 8.1 Windows 10 macOS 10.10 macOS 10.11 macOS 10.12 macOS 10.13 *As of November, 2021: Check with manufacturer for the most up-to-date compatibility |
| Processor Requirement | 2.0 GHz Intel Core |
| RAM Requirements | 4 GB |
| Storage Requirements | 250 MB |
| Minimum Display Resolution | 1280 x 768 |
| Required Hardware | Available USB 2.0 Port |
| Power Requirements | AC/DC Power Adapter (Included) |
| Power Supply Output | 12 VDC at 3 A |
| AC Input Power | 120 VAC, 60 Hz |
| Power Consumption | 0.4 W (Standby) |
| Current Consumption | 0.9 A |
| Operating Humidity | 5 to 85% |
| Operating Temperature | 41 to 95°F / 5 to 35°C |
| Dimensions (W x D x H) | 27.9 x 14.2 x 2.9″ / 708.0 x 361.4 x 73.4 mm |
| Weight | 13.2 lb / 6 kg |
| Package Weight | 17 lb |
| Box Dimensions (LxWxH) | 30.25 x 17.5 x 7″ |
