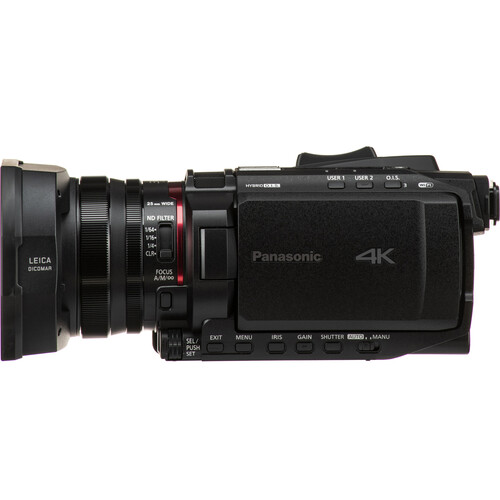

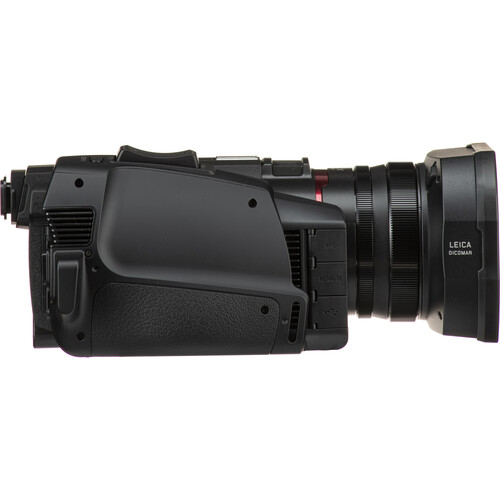

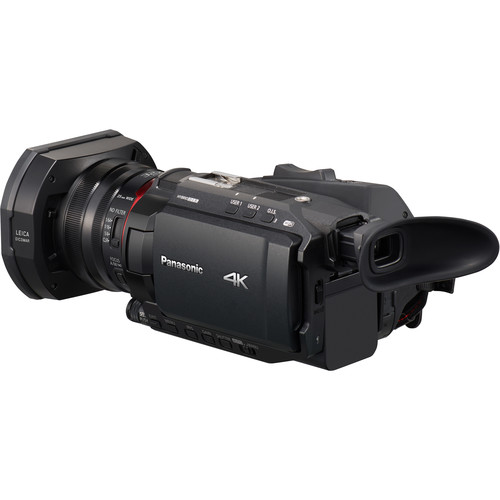

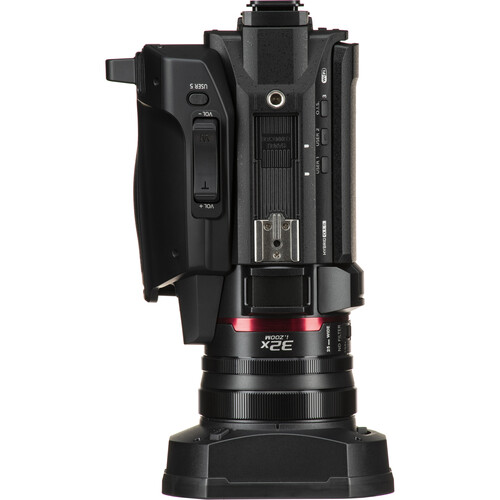

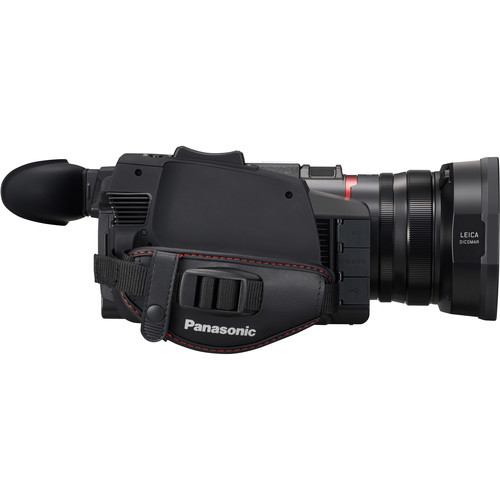

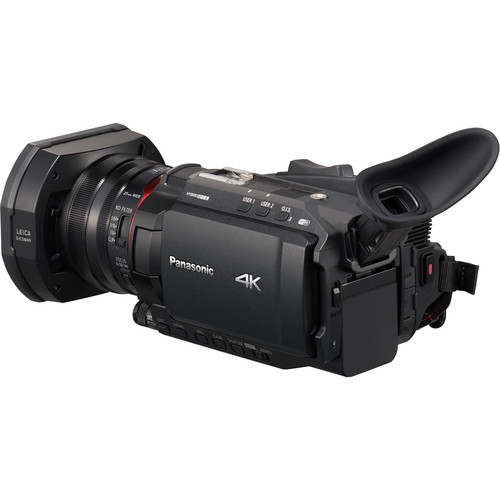

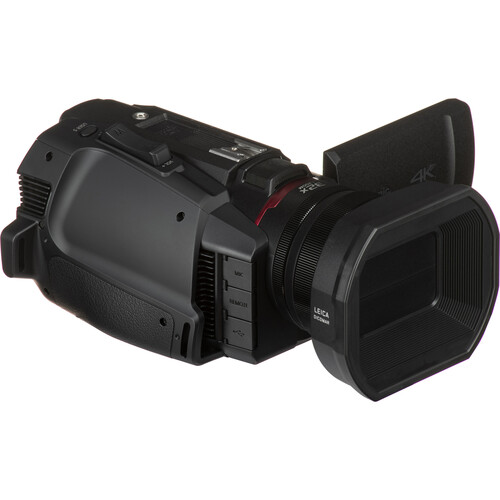

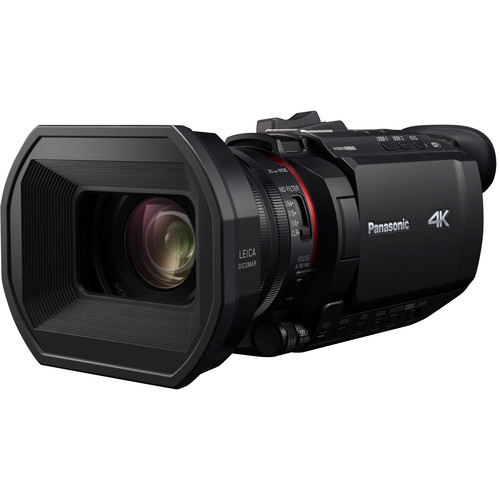

Panasonic HC-X1500 UHD 4K HDMI Pro Camcorder with 24x Zoom
The Panasonic HC-X1500 UHD 4K/Full HD Director’s Camcorder can help balance your needs or allow you to jump straight to 4K. Compact and lightweight for a director or on-set BTS, the X1500 shoots and records UHD 4K at broadcast-compatible frame rates, so it fits smoothly into your existing broadcast workflow. The X1500 features a 1/2.5″ 8.29M MOS sensor that is always shooting at 4K resolution, the Venus processing engine to scale the 4K image for Full HD delivery, and an HDMI output. Audio is recorded in up to 24-bit PCM via the built-in microphone.

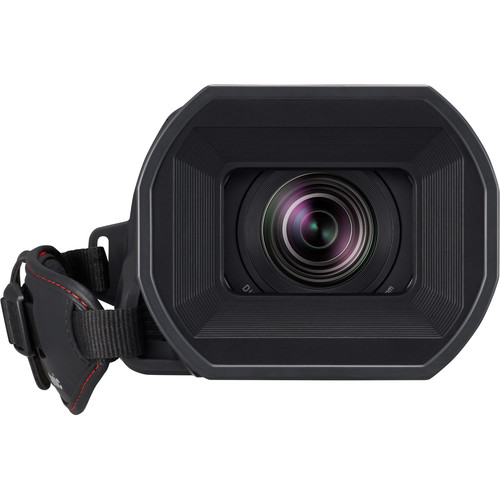

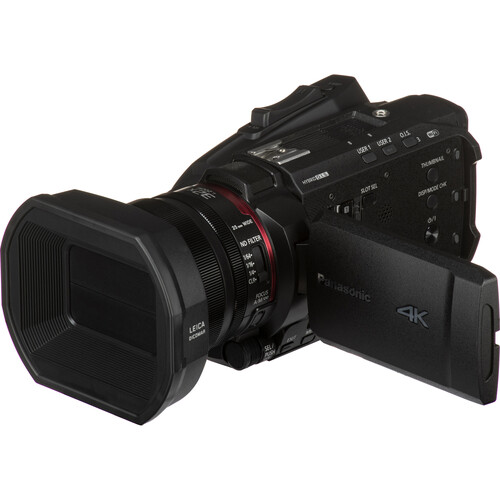

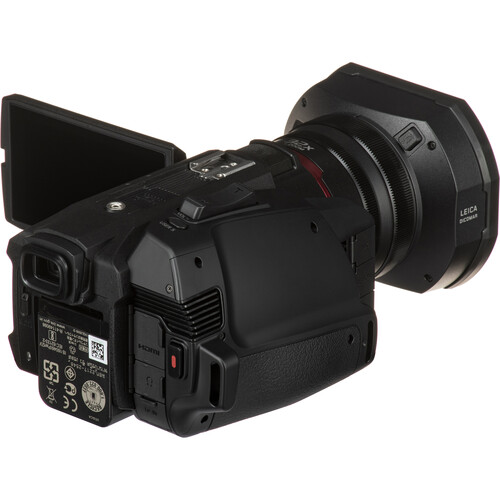

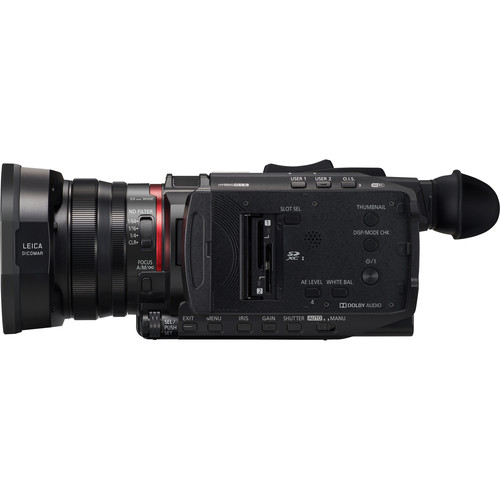

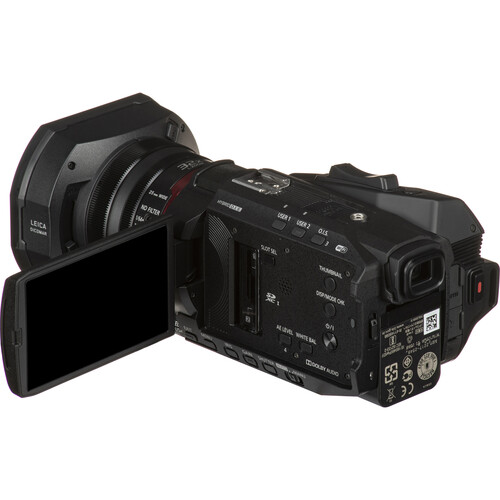

The built-in Leica Dicomar lens features a 24x zoom with its widest angle at 25mm, and it uses the digital iZoom feature to zoom up to 48x. The Face Detection AF feature allows you to track faces and automatically adjusts focus on your subject. It also features manual control rings, a control dial, and a 5-axis optical image stabilization to keep your shots steady. The 3.5″ fold-out LCD features a high-resolution touchscreen. The camera records in .mp4, .mov, and AVCHD codecs and features HEVC compression. The camera incorporates two SD card slots, allowing you to use relay and simultaneous recording. The camera also supports live streaming over 2.4 GHz Wi-Fi via RTP/RTSP/RTMP/RTMPS streams.
You also have the option to add the VW-HU1 top handle unit which is available separately and provides two 3-pin XLR inputs, a built-in LED light, a microphone holder, and accessory mounting options.
| Brands | Panasonic |
|---|
Panasonic HC-X1500 Specs
| Sensor Resolution | Actual: 8.57 Megapixel Effective: 8.29 Megapixel |
| Sensor Type | 1/2.5″-Type MOS Sensor |
| Image Stabilization | Optical in Integrated Lens |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters |
| Capture Type | Stills & Video |
| Shutter Type | Not Specified by Manufacturer |
| Shutter Speed | 1/8000 to 1/6 Second |
| Gain | 0 to 30 dB |
| Minimum Illumination | 1.5 Lux at 1/30 Shutter Speed |
| White Balance | 2000 to 15,000K |
| Focal Length | 4.1 to 98.9mm (35mm Equivalent Focal Length: 25 to 600mm) |
| Optical Zoom Ratio | 24x |
| Max Digital Zoom | 48x |
| Maximum Aperture | f/1.8 |
| Minimum Aperture | f/4 |
| Optical Design | 14 Elements in 11 Groups |
| Minimum Focus Distance | Wide: 0.3′ / 0.1 m Telephoto: 3.9′ / 1.2 m |
| Filter Size | 62 mm |
| Control Rings | Focus Zoom Iris |
| Focus Control | Autofocus Manual Focus |
| Internal Recording Modes | H.265 Long GOP/MOV 4:2:0 10-Bit 3840 x 2160 at 23.98/25/29.97/50/59.94 fps [100 to 200 Mb/s VBR] H.264 Long GOP/MOV 4:2:0 8-Bit 3840 x 2160 at 23.98/25/29.97/50/59.94 fps [100 to 150 Mb/s VBR] H.264 Long GOP/MOV 4:2:2 10-Bit 3840 x 2160 at 23.98/25/29.97 fps [150 Mb/s VBR] 1920 x 1080p at 23.98/25/29.97/50/59.94/100 fps [50 to 100 Mb/s VBR] 1920 x 1080i at 50/59.94 fps [50 to 100 Mb/s VBR] H.264 ALL-Intra/MOV 4:2:2 8-Bit 1920 x 1080p at 23.98/25/29.97/50/59.94 fps [100 to 200 Mb/s VBR] 1920 x 1080i at 50/59.94 fps [100 Mb/s VBR] H.265 Long GOP/MP4 4:2:0 10-Bit 3840 x 2160 at 23.98/25/29.97/50/59.94 fps [72 to 100 Mb/s VBR] H.264 Long GOP/MP4 4:2:0 8-Bit 3840 x 2160 at 23.98/25/29.97 fps [50 to 72 Mb/s VBR] 1920 x 1080p at 23.98/50/59.94 fps [50 Mb/s VBR] AVCHD 4:2:0 8-Bit 1920 x 1080p at 23.98/50/59.94 fps [21 to 25 Mb/s VBR] 1920 x 1080i at 50/59.94 fps [17 to 21 Mb/s VBR] 1280 x 720 at 50/59.94 fps [8 Mb/s VBR] |
| Fast-/Slow-Motion Support | Yes |
| Built-In Microphone Type | Stereo |
| Audio Recording | MOV: 2-Channel 24-Bit LPCM Audio MP4: 2-Channel 24-Bit AAC Audio AVCHD: 2-Channel 24-Bit AC-3 Audio |
| IP Streaming | RTMP, RTP, RTSP 320 x 180 to 1920 x 1080 at 25p, 30p, 50p, 60p (0.5 to 24.00 Mb/s) |
| Image File Format | JPEG |
| Media/Memory Card Slot | Dual Slot: SD/SDHC/SDXC (UHS-I) [U3/V30 or Faster Recommended] |

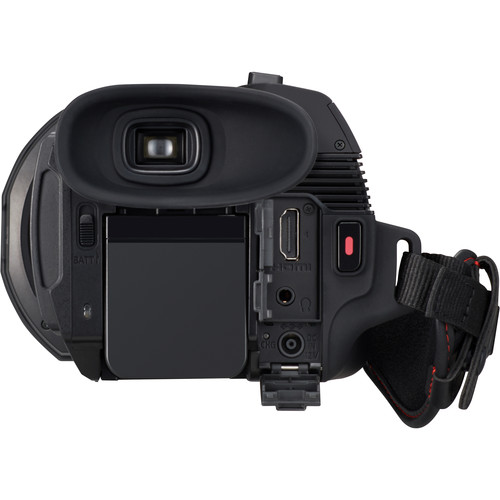

| Video I/O | 1 x HDMI Output |
| Audio I/O | 1 x 1/8″ / 3.5 mm TRS Stereo Microphone Input 1 x 1/8″ / 3.5 mm TRS Stereo Headphone Output |
| Power I/O | 1 x Barrel (12VDC) Input |
| Other I/O | 1 x Micro-USB Input 1 x 2.5 mm Sub-Mini Output |
| Wireless | 2.4 GHz Wi-Fi 4 (802.11n) |
| Mobile App Compatible | Yes: Android & iOS App Name: HC ROP Functionality: Remote Control *As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
| Global Positioning (GPS, GLONASS, etc.) | None |
| Size | 3.5″ |
| Resolution | 2,760,000 Dot |
| Display Type | Articulating Touchscreen LCD |
| Type | Built-In Electronic (LCD) |
| Size | 0.24″ |
| Resolution | 1,560,000 Dot |
| Focus Type | Auto and Manual Focus |
| Focus Mode | Automatic, Manual Focus |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 80% |
| Battery Type | Panasonic AG-VBR Series |
| Power Consumption | 7.9 W |
| Tripod Mounting Thread | 1/4″-20 Female |
| Accessory Mount | 1 x Intelligent Hot Shoe |
| Built-In Video Light | No |
| Dimensions (W x H x D) | 10.1 x 5.1 x 3.7″ / 257 x 129 x 93 mm (Without Handle) |
| Weight | 2.65 lb / 1.2 kg |
| Package Weight | 5.05 lb |
| Box Dimensions (LxWxH) | 12.8 x 11.1 x 8.38″ |
