Description

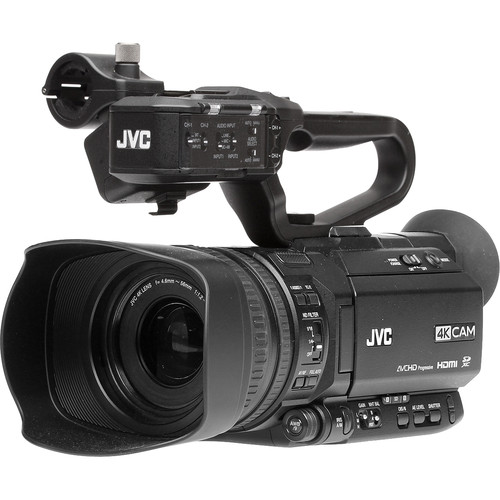

JVC UHD 4K Streaming Camcorder House of Worship Version
Stream 4K video and enable a single operator to add lower-thirds and titles while recording, with no external character generator or switcher required, with the GY-HM250W UHD 4K Streaming Camcorder from JVC. The camera is designed to be easy for one nontechnical camera operator to set up and shoot, record, and stream video in any house of worship environment.
The GY-HM250W is a full-featured pro camcorder that features a 1/2.3″ sensor, can stream video directly to the internet, and captures up to UHD 4K 4:2:2 video at 24/30p. This versatile camera offers you the option of recording UHD 4K at rates up to 150 Mb/s to SDXC Class 3 cards or up to 70 Mb/s to SDXC/SDHC Class 10 cards. In HD mode, custom graphics can be created and controlled via a browser-controlled tablet or smartphone. The GY-HM250W also comes with preinstalled color schemes and the ability to upload icons or logos to add a personalized look to your footage.
An integrated 12x zoom lens with a tele-macro function provides a 35mm equivalent focal range of 29.6 to 355mm, and a 24x dynamic zoom mode is available when recording in HD. For composing and monitoring video, the camcorder features a 3.5″ LCD, a 0.24″ viewfinder, and a smart focus assist function. Additional features include dual SDHC/SDXC card slots, two internal ND filters, and a built-in stereo microphone. Designed to fit into professional workflows, the JVC GY-HM250W camcorder comes with 3G-SDI and HDMI outputs and dual XLR audio inputs.
It also features optional IP streaming via separately available Wi-Fi, wired Ethernet, or 4G LTE adapters for Full HD streaming in the field directly from the camcorder and remote camera control and monitoring from your mobile device or laptop. Compatible with RTMP, Zixi, and Wowza streaming, the GY-HM250W offers one-click zeroconf configuration when using a common LAN between cameras. A firmware update brings Facebook Live integration to the camera, streamlining the connection process.
A top handle unit with two integrated XLR audio inputs, an SSL-JVC50 battery, and an AC adapter are included with the camera.
Note:
Note:
Additional Features
| Brands | JVC |
|---|
JVC GY-HM250 Specs
| Sensor Resolution | Effective: 12.4 Megapixel (3840 x 2160) |
| Sensor Type | 1/2.33″-Type CMOS Sensor |
| Image Stabilization | Optical in Integrated Lens |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16) ND Filters |
| Capture Type | Video Only |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/10000 to 1/6 Second |
| Gain | 0 to 24 dB (Native) 30 to 36 dB (Expanded) |
| Precise Scan Rate Control | Yes |
| White Balance | 2300 to 15,000K |
| Focal Length | 4.6 to 56mm (35mm Equivalent Focal Length: 29.6 to 355mm) |
| Optical Zoom Ratio | 12x |
| Max Digital Zoom | 24x ( in 1080p) |
| Maximum Aperture | f/1.2 |
| Minimum Aperture | f/3.5 |
| Minimum Focus Distance | Not Specified by Manufacturer |
| Filter Size | 62 mm |
| Control Rings | Focus Zoom |
| Focus Control | Autofocus Manual Focus |
| Internal Recording Modes | H.264 3840 x 2160 at 23.98/25/29.97 fps [70 to 150 Mb/s] 1920 x 1080p at 23.98/25/29.97/50/59.94/100/ fps [35 to 50 Mb/s] 1920 x 1080i at 50/59.94 fps [24 to 50 Mb/s] 1920 x 1080p at 50/59.94 fps [12 to 28 Mb/s] 1440 x 1080i at 50/59.94 fps [5 to 9 Mb/s] 1280 x 720 at 59.94 fps [8 Mb/s] 960 x 540 at 23.98/25/29.97 fps [3 Mb/s] 720 x 480i at 50/59.94 fps [8 Mb/s] 720 x 576i at 50 fps [8 Mb/s] 480 x 270 at 23.98/25/29.97 fps |
| Broadcast Output | NTSC/PAL |
| Built-In Microphone Type | Stereo |
| Audio Recording | AVCHD: 2-Channel 16-Bit 48 kHz LPCM Audio AVCHD: 2-Channel 16-Bit 48 kHz AC-3 Audio |
| IP Streaming | H.264, H.265, MPEG2, RTMP, RTP, RTSP, ZIXI 1920 x 1080 at 50i, 59.94i (3.0 to 12.00 Mb/s) 1280 x 720 at 25p, 29.97p, 50p, 59.94p (1.5 to 12.00 Mb/s) 720 x 576 at 50i (0.3 to 8.0 Mb/s) 720 x 480 at 59.94i (0.3 to 8.0 Mb/s) 640 x 360 at 25p, 29.97p, 50p, 59.94p (0.3 to 8.0 Mb/s) |
| Media/Memory Card Slot | Dual Slot: SD/SDHC/SDXC (UHS-I) [U3/V30 or Faster Recommended] |
| Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI Output 1 x 1/8″ / 3.5 mm TRRS A/V Output |
| Audio I/O | 2 x XLR 3-Pin (+48 V Phantom Power) Input 1 x 1/8″ / 3.5 mm TRS Stereo Microphone (Plug-in Power) Input 1 x 1/8″ / 3.5 mm TRRS Headphone/Mic Headphone Output |
| Power I/O | 1 x Barrel (12 VDC) Input |
| Other I/O | 1 x USB-A (USB 2.0) Data Output 1 x Mini-USB (USB 2.0) Output 1 x 2.5 mm Sub-Mini Control Input |
| Wireless | None |
| Global Positioning (GPS, GLONASS, etc.) | None |
| Size | 3.5″ |
| Resolution | 920,000 Dot |
| Display Type | Articulating LCD |
| Type | Built-In Electronic (LCOS) |
| Size | 0.24″ |
| Resolution | 1,560,000 Dot |
| Focus Type | Auto and Manual Focus |
| Focus Mode | Automatic, Manual Focus |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 122°F / -20 to 50°C |
| Operating Humidity | 30 to 80% |
| Battery Type | JVC SSL-JVC50 |
| Power Consumption | ≥7.9 W |
| Tripod Mounting Thread | 1/4″-20 Female |
| Accessory Mount | 1 x 1/4″-20 Female 1 x Cold Shoe Mount |
| Dimensions (W x H x D) | 12.1 x 7.5 x 5.9″ / 307 x 191 x 149 mm (With Handle) |
| Weight | 3.53 lb / 1.6 kg |
| Package Weight | 6.175 lb |
| Box Dimensions (LxWxH) | 13.7 x 11.6 x 10.2″ |
