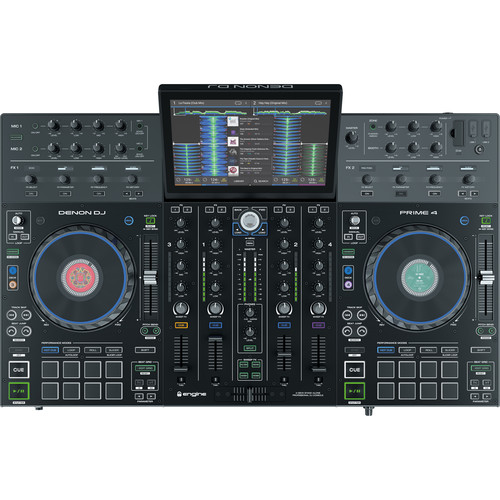

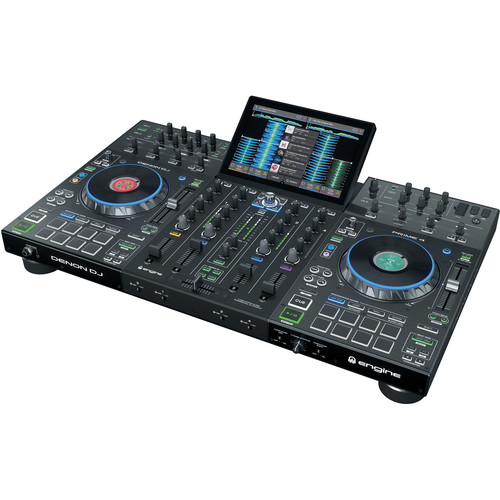

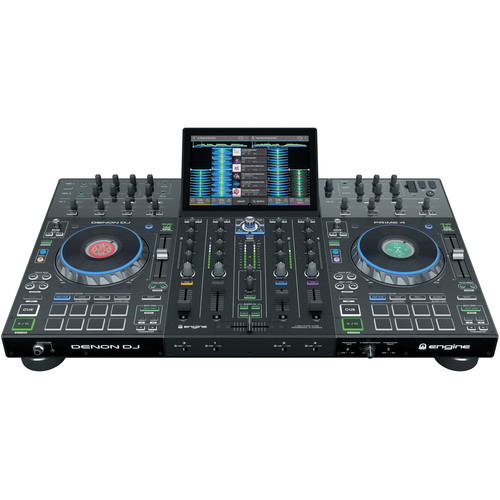

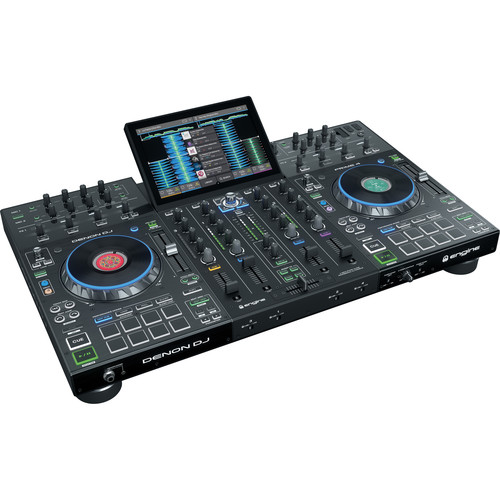

Denon DJ Prime 4 Standalone 4-Deck DJ System with 10″ Touchscreen
Denon DJ Prime 4, an all-in-one standalone DJ system with an integrated 10″ touchscreen that’s designed for professional DJs wishing to perform without a laptop computer.
The multicore processor powered Prime 4 makes your entire music collection available, transparently connecting you to your performance with advanced features including 13 DJ effects, sweep & filter effects, and 8 performance trigger pads per deck, which allows you to live remix whole tracks and beat juggle with super-responsive hot-cue control, as well as split bars and beats with quantize-locked rolls, slicer and advanced looping.
The rugged meal enclosure is built to handle the rigors of on-the-road wear and tear. Two responsive touch-capacitive jog wheels feature the DJ brand logo or playing track artwork, and the adjustable, 10-inch touchscreen allows you to perform as a standalone. The Prime 4 provides four USB inputs, a single SD input, and an under-panel 2.5″ built-in SATA drive bay for quick and easy library and track selection. Plus, any source can be used to record a full set. With USB Keyboard support for optimized track browsing and playback facilities for uncompressed audio formats (FLAC, ALAC, WAV), Prime 4 allows you to call up your entire music collection via connectivity that guarantees immediate, hassle-free access to your library.

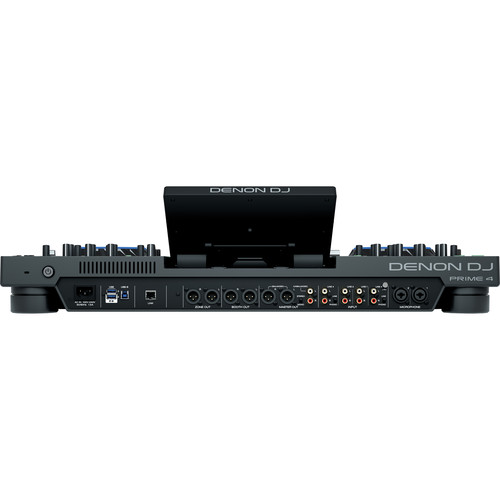

The rear panel includes a multitude of inputs and outputs including RCA line-level inputs for all four decks. Inputs three and four feature phono switch inputs with ground lugs for turntable support. Each channel on the mixer offers gain control and a dedicated 3-band EQ plus effect 1 and 2 selectors. For outputs, the Prime 4 provides balanced XLR and unbalanced RCA master L/R. Booth outputs are balanced XLR as well as the Zone output, which allows you to send your performance or a separate mix to a different room with dedicated gain and EQ control. Additionally, there are two high-performance combo microphone inputs, each with dedicated gain, 3-band EQ, and echo effects.
Use Prime 4’s StagelinQ connection to easily create impactful, visually dynamic lighting and video scenes via Denon DJ’s partnerships with Soundswitch, Timecode and Resolume.
- Touch, move, and orchestrate your digital music with the DJ world’s most advanced, multi-gesture touchscreen
- Entertain two separate audiences: Rock the dancefloor in one room, and zone output to a different location simultaneously
- Access and play your tracks, fully standalone, from literally unlimited sized music collections and media sources
- Built-in Wi-Fi to connect and play music from streaming services or your personal cloud storage
- Multicore processor powered, gig ready, rugged metal chassis and renowned Denon DJ pristine audio quality
- View 4-decks of horizontal or vertical waveforms
- Search, select, preview and load your tracks
- Create playlists and crates on-the-fly
- Monitor all essential DJ parameters and info
- Dedicated XLR Zone output with gain and EQ control
- Stream back-to-back music automatically into second room
- Assign either Deck 4 or Master signal to Zone output
- Party in one room, chill-out in the other
- Bring massive music libraries to gigs
- 4 USB inputs, 1 x SD-card slot
- Futureproof storage with built-in 2.5” SATA drive bay
- Record a full DJ set to any connected source
- Stream directly from Beatport LINK, Beatsource LINK, SoundCloud GO+, and TIDAL
- Access your collection from the cloud with Dropbox support
- Plays compressed and uncompressed music file formats including AIFF, FLAC, ALAC, and WAV
- Plug and play compatible with rekordbox prepared USB/SD media devices
- USB keyboard support for optional music search
- 4-channel line faders, each with 3-band EQ and gain
- Single encoder, (4) sweep FX including filter control
- 14 Mainstage quality Post-Fader FX
- Inputs are assignable for external media sources
- User replaceable crossfader
- No compromise of line fader – 2 dedicated mic channels
- Control EQ, level and echo effects on both mics
- Punch in on/off and talkover option for pro-mobile use
- 2 dedicated TRS mic inputs
- With built-in Wi-Fi and an Ethernet Link port for hardwired internet connections, the PRIME 4 connects you with your favorite music streaming service or personal cloud storage without being tethered to a computer. Log in to your streaming account directly on the unit for instant access to the world’s largest music collections. The PRIME 4 offers a vast array of streaming service options including Beatport LINK, Beatsource LINK, SoundCloud GO+, and TIDAL, so whatever the genre the PRIME 4 has you covered. If that’s not enough, connect your Dropbox account to access your personal music collection remotely from anywhere in the world.
- Ultraresponsive, capacitive-touch jog wheels
- Central HD display shows track artwork or brand logo
- RGB light customizable to DJ’s visual preference
- Perform hot-cue juggling to live track remixing
- Create saved Loop regions for track timeline variety
- Dynamic straight and triplet time/roll triggers
- Beat Slicer to punctuate variable rhythmic phrases
- 14 class-leading FX sourced from X1850 club mixer
- Individual effect selector and parameter controls
- Crystal clear OLED screens show adjustable FX info
- Effects on/off and Beats buttons for dynamic punch-ins
- Class-leading, DAW-quality timestretch algorithm
- Perform pitch-locked extreme track-tempo changes
- Match and shift harmonic musical keys live in the mix
- The ultimate in standalone Open Format DJing flexibility
- Denon DJ’s StagelinQ connection controls SoundSwitch lighting and Resolume video software: Easily sync and enhance any AV show from mobile to mainstage.
- Music management software for Engine OS hardware. Prepare and optimize digital music collections for playback. Sync and import from Apple Music App/iTune, Serato DJ, Traktor, and rekordbox collections including hot cues and loops.
- In addtion to standalone playback, the unit also offers Controller mode, providing 1:1 control over compatible DJ software applications including VirtualDJ
Denon DJ PRIME 4 Specs
| Configuration | 4-Deck |
| Number of Channels | 4 x Stereo 2 x Mic |
| Platter/Jog Wheel | 2 x 6.0″ / 15.2 cm Touch-Sensitive |
| Faders | 4 x Channel Level 2 x Pitch 1 x Crossfader |
| Display | 1 x 10.1″ / 256.5 mm ColorLCD Touchscreen |
| Sample Pads | 8 x Assignable per Deck (Backlit) |
| EQ | 4 x Channel EQ: Hi Mid Low 2 x Mic EQ: Hi Mid Low |
| Performance Controls | BPM Counter, Band-Pass Filter, Beat Sync, Cues, EQ, Echo, FX, High-Pass Filter, Key Lock, Loop Points, Low-Pass Filter, Master Tempo, Pitch Control, Sampler, Scratch, Search, Slip Mode, Tempo Control, Transport Controls |
| Built-In Effects | Delay, Delay (Stereo/Ping Pong), Delay (Tap), Distortion, Echo (Dub-Style), Echo (Type Unspecified), Flanger, Phaser, Reverb, Reverb (Gated) |
| Sample Rates | 44.1 kHz |
| Bit Depths | Up to 24-Bit (Sound Card) |
| Pitch Control Range | ±4 / 8 / 10 / 20 / 50 / 100% |
| Audio Inputs | 2 x Stereo RCA TS Unbalanced Line Input 2 x Stereo RCA TS Unbalanced Line/Phono Input 2 x Combo XLR-1/4″ 3-Pin Mic Input |
| Audio Outputs | 2 x XLR 3-Pin Balanced Master Output 1 x Stereo RCA TS Unbalanced Master Output 2 x XLR 3-Pin Balanced Booth Output 2 x XLR 3-Pin Balanced Aux Output 1 x 1/4″ TRS Headphone Output 1 x 1/8″ / 3.5 mm TRS Headphone Output |
| Other I/O | 1 x RJ45 Ethernet |
| USB | 4 x USB Type-A (Device Charging/HDD/Thumb Drive) 1 x USB Type-B (Host Connection) |
| Wireless Connectivity | Wi-Fi |
| Media Card Slots | 1 x SD (Unspecified Type) |
| Internal Drive Bays | 1 x 2.5″ SATA (Drive Not Included) |
| Supported File Formats | AAC, AIFF, ALAC, FLAC, M4A, MP3, MP4, OGG, Vorbis, WAV |
| File System Support | Hard Disk Drive/SD/SDHC/USB Flash Drive: FAT32, exFAT |
| Frequency Response | 20 Hz to 20 kHz ±1 dB |
| Input Level | Mic: -40 dBu (Unity) -60 dBu (Min) Aux/Line: +15 dBV (Max) 0 dBV (Unity) |
| Headroom | Aux/Line Input: >15 dB Mic Input: >20 dB Output: >20 dB |
| Output Level | Master: +24 dBu (Max, Balanced) +4 dBu (Unity, Balanced) +20 dBu (Max, Unbalanced) 0 dBu (Unity, Unbalanced) Aux: +24 dBu (Max) 0 dBu (Unity) Booth: +24 dBu (Max) +4 dBu (Unity) |
| Headphone Output Power | 150 mW into 40 Ohms (Max) |
| Channel Separation | <-90 dB (1 kHz, Unity) |
| Dynamic Range | >117 dBA |
| SNR | >93 dBA |
| THD | Aux/Line: <0.01% (1 kHz, Unity) Mic: <0.02% (1 kHz, Unity) |
| Included Software | None |
| OS Compatibility | macOS Windows *As of November, 2021: Check with manufacturer for the most up-to-date compatibility |
| Internet Connection | Required for Media Streaming |
| Power Requirements | AC Input |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power I/O | 1 x IEC |
| Power Consumption | 45 W (Maximum) 39 W (Typical) |
| Dimensions (W x D x H) | 28.7 x 19.6 x 4.1″ / 72.9 x 49.8 x 10.4 cm |
| Weight | 21.34 lb / 9.68 kg |
| Package Weight | 33.8 lb |
| Box Dimensions (LxWxH) | 35 x 24 x 11″ |
